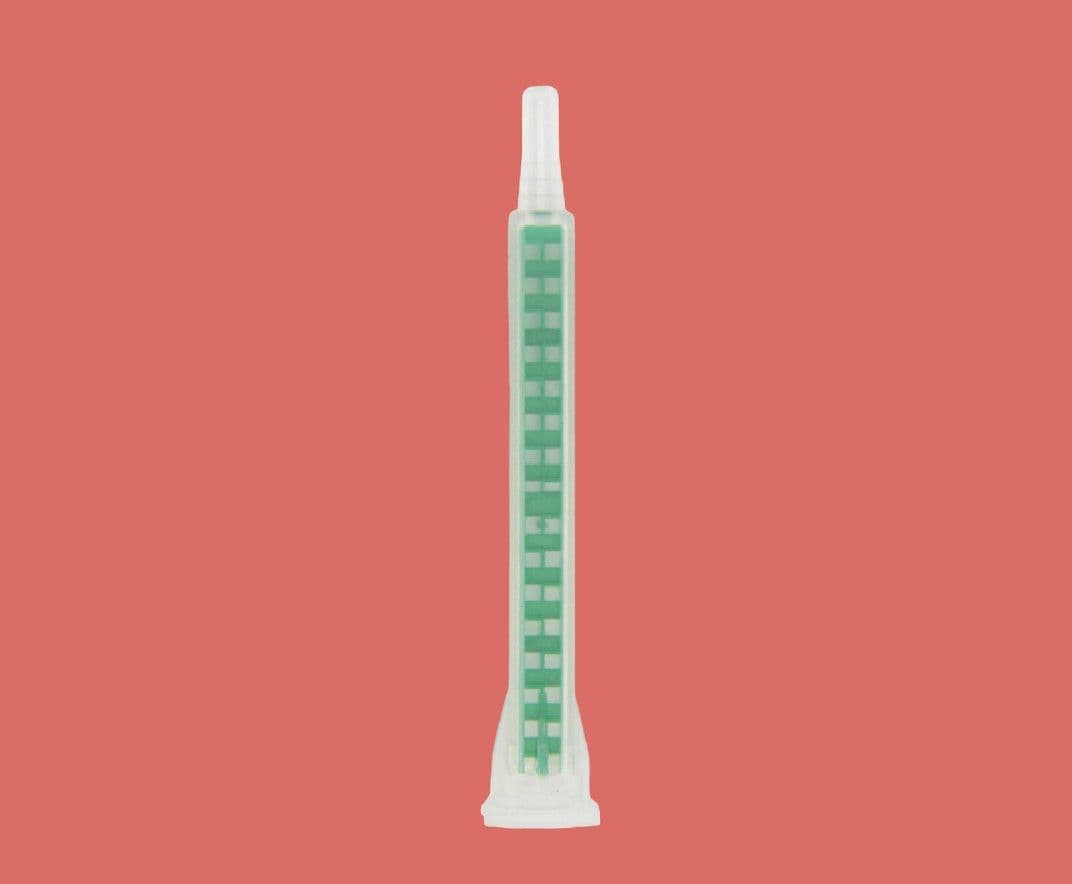

Mix Nozzle Bayonet 5.3mm ID x 16 Elements MAQ05-16L

Mix Nozzle Bayonet 5.3mm ID x 16 Elements MAQ05-16L
Product Code: MAQ05-16L

ID: 5.3mm. Elements: 16. Length: 83mm. Volume: 1.3ml. For 50ml 1:1/2:1 Cartridges.
Square body static mixer nozzle for 50ml and 75ml dual component cartridges. MAQ static mixers are also known as the green square Quadro type. This range of products is attached using a bayonet style connection. Luer outlet that will accept all dispensing tips simply being pushed on. These mixer nozzles are suitable for all two-component materials. They have green elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to use with 1:1 (Part # 451000) and 2:1 (Part # 452013) 50ml dual cartridges as well as pre-filled epoxy cartridges. All items are industrial grade safe and silicone free. 5.3mm ID x 16 mixing elements. In packs of 10 nozzles.

Specifications:
Part ID: MAQ05-16L (300028)
Material: Polypropylene
Colour: Natural Outer, Green Elements
Inner Diameter: 5.3mm
Nozzle Length: 83mm
No. Of Mix Elements: 16
Retained Volume: 1.3ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Pack Size: 10
Brand: Adhesive Dispensing Ltd
Lead Time: Ex Stock

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £4.50  Exc VAT

QTY

  • Availability: In Stock
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: MAQ05-16LPack Size: 10Lead Time: Ships Within 24 HoursMix Ratio: 1:1/ 2:1
