This applicator is used for epoxies, adhesives, silicones, polyurethanes, potting compounds and other materials that are supplied in 200ml dual side-by-side 1:1, 2:1, 4:1 and 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

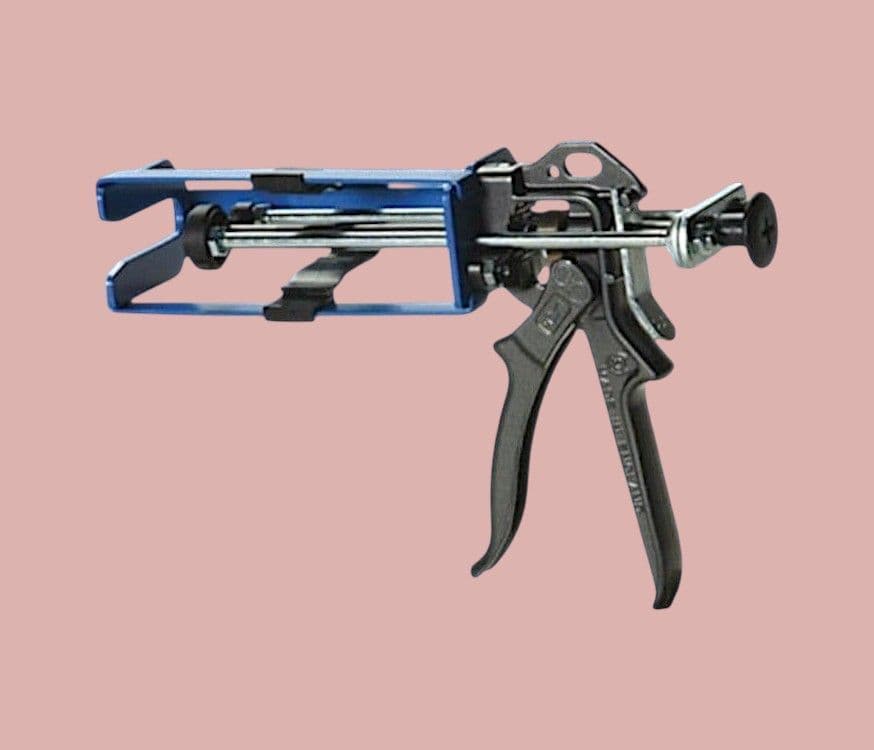

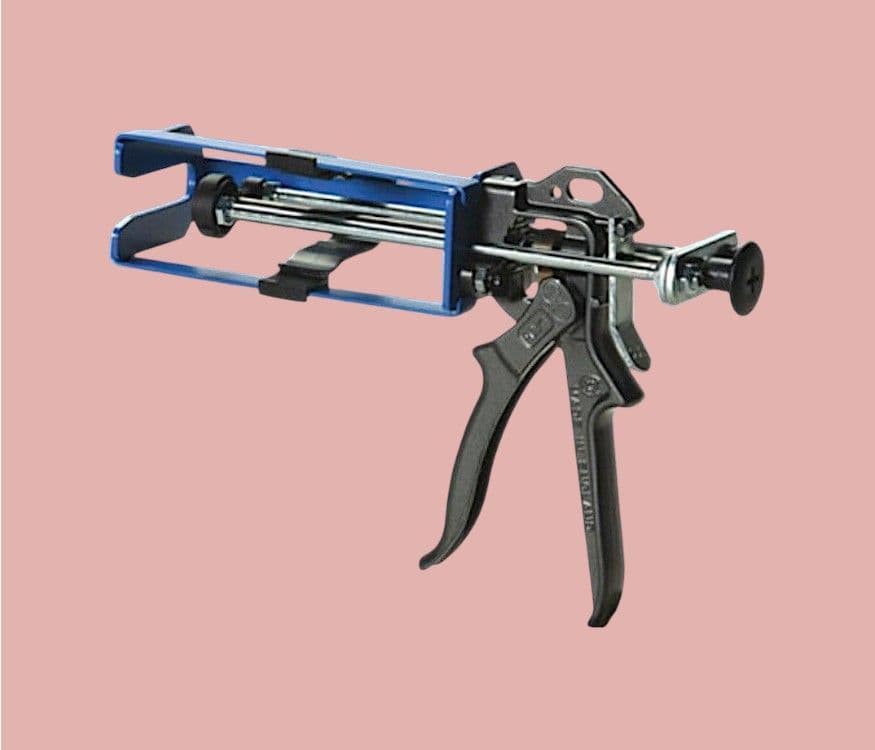

This applicator is suited to medium to high viscosity materials. It has a 25:1 mechanical thrust ratio. This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The VBM Series guns are covered by a 1 year warranty and feature a wear compensating device. Supplied with disc kit for easy change of ratio.
Part ID: VBM200MRX
Frame Material: Epoxy Coated Steel
Handle Material: Epoxy Coated Aluminium
Colour: Blue Frame, Black Handle
Cartridge Size: 200ml
Cartridge Mix Ratios: 1:1/ 2:1/ 4:1/ 10:1
Maximum Thrust: 4.5kN (450kg)
Mechanical Ratio: 25:1
Cartridge Frame Length: 166mm
Weight: 1.5kg
Warranty: 1 Year
Viscosity: Medium, High
Commodity Code: 90289090
Origin: United Kingdom
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
