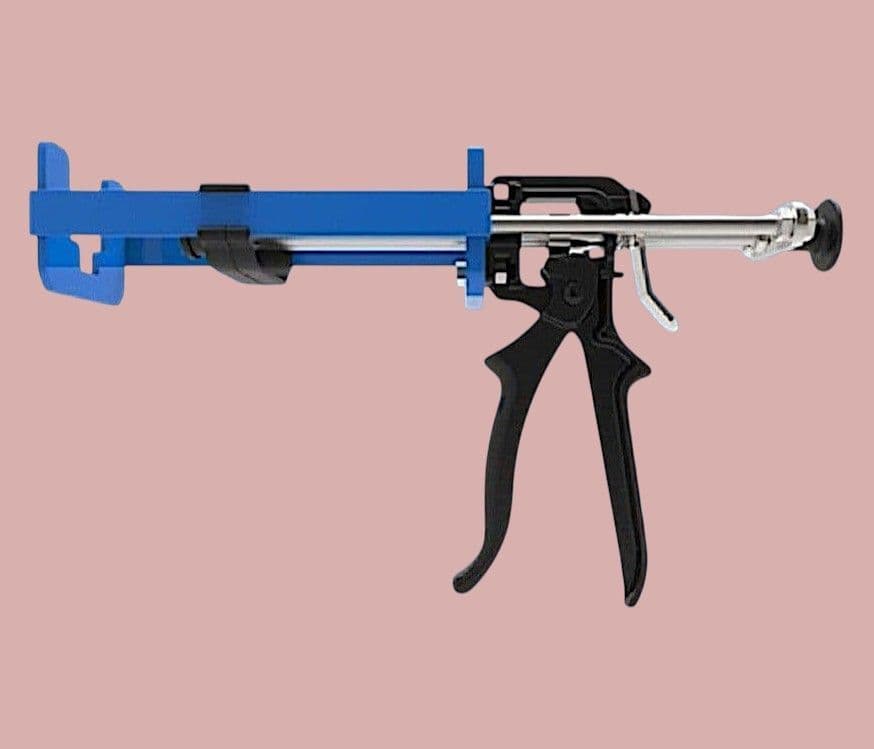

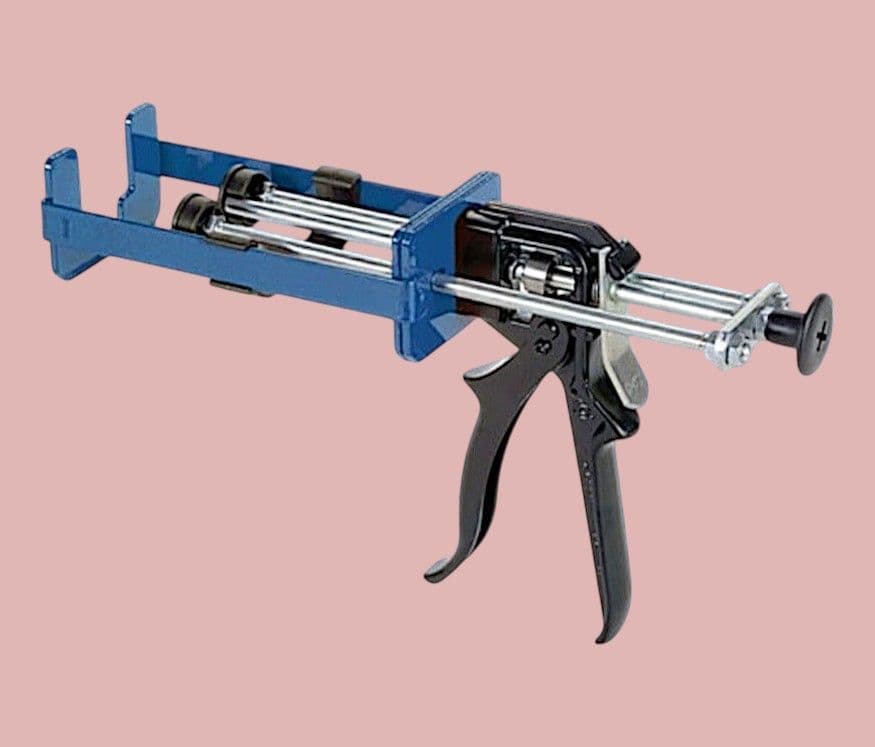

The VBM100 is a manual bi-mixer for 200ml 1:1 ratio standard and clip-together cartridge systems. An applicator for fixed ratio and short (152mm) clip together cartridges.

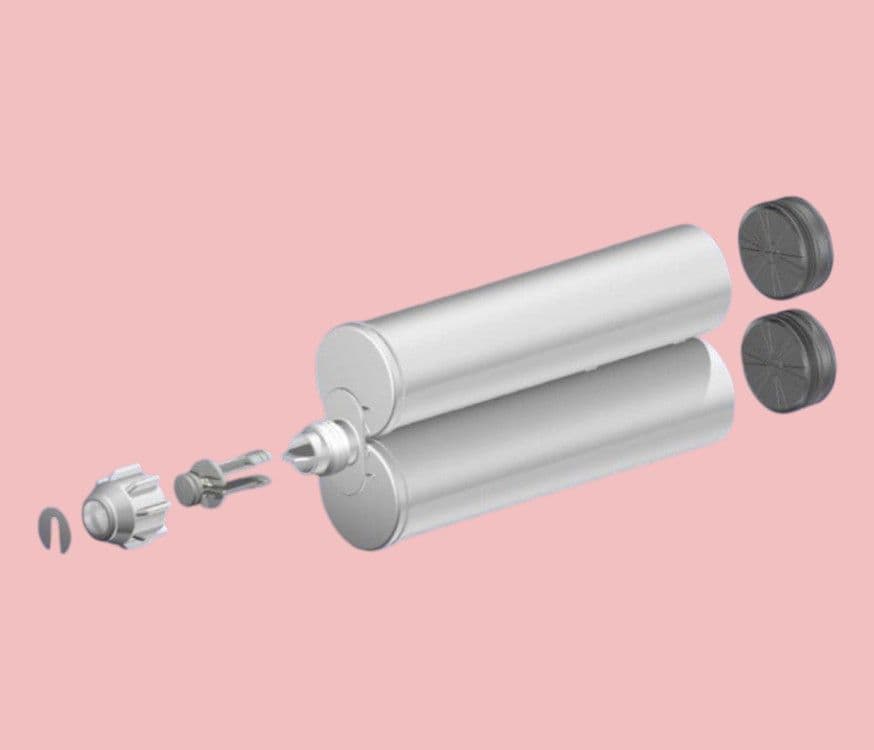

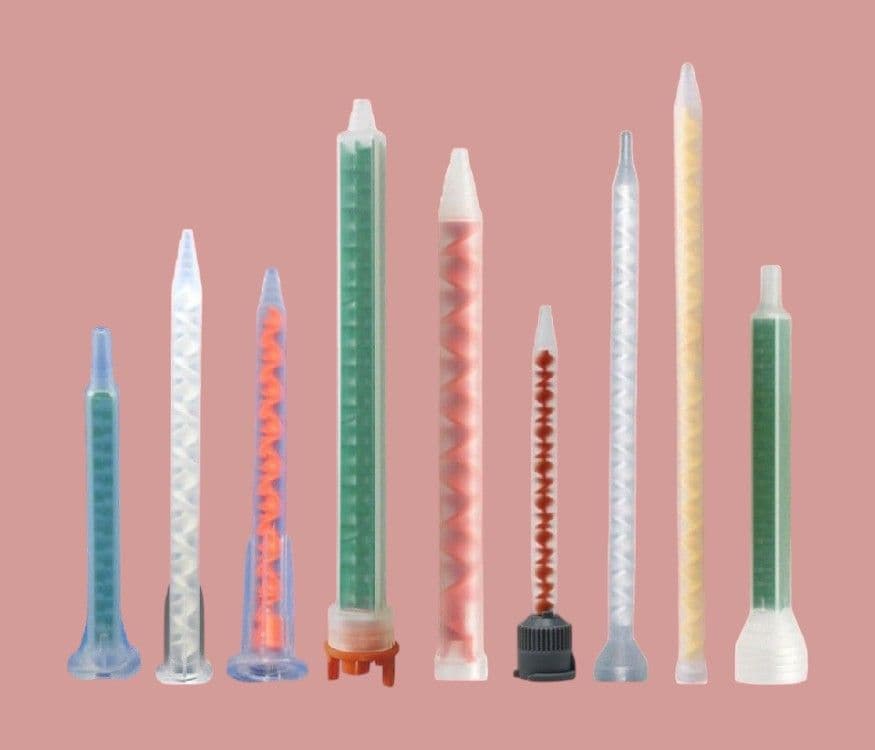

This applicator is used for epoxies, adhesives, silicones, polyurethanes, potting compounds and other materials that are supplied in 200ml dual side-by-side 1:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

This applicator is suited to low to medium viscosity materials. It has an 18:1 mechanical thrust ratio.

This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The VBM Series guns are covered by a 1 year warranty and feature a wear compensating device.

Part ID: VBM100
Handle Material: Epoxy Coated Aluminium
Frame Material: Epoxy Coated Steel
Colour: Blue Frame, Black Handle
Cartridge Size: 200ml (7 Ounce)
Cartridge Ratio: 1:1 Only
Total Weight: 1.2kg
Cartridge Holder Length: 166mm (6.5")
Maximum Thrust: 2.5kN (250kg)
Mechanical Advantage Ratio: 18:1
Viscosity: For Low to Medium
Warranty: 1 Year
Approvals: REACH
Commodity Code: 90289090
Origin: United Kingdom
